XCLUSIVE DUCK BOAT SERIES

The all-new Xpress X16DB and X18DB are more than duck boats. They’re versatile hunting and fishing machines engineered to perform in any environment. From shallow marshes to open water, the Hyper-Lift Hull delivers a lightning-fast hole shot, exceptional handling, and a smooth, dry ride. The Step Pod Transom with SeaDek pad provides easy, slip-resistant access, while the versatile layout accommodates both hunting and fishing adventures. Powered by reliable Yamaha outboards, these 16- and 18-foot tiller-handled beasts deliver the speed, stealth, and performance outdoorsmen demand. Easy to handle, simple to maintain, and built for adventure, the X16DB and X18DB are ready for waterfowl season and weekend fishing trips alike.

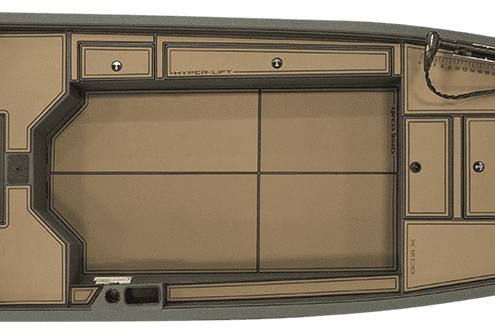

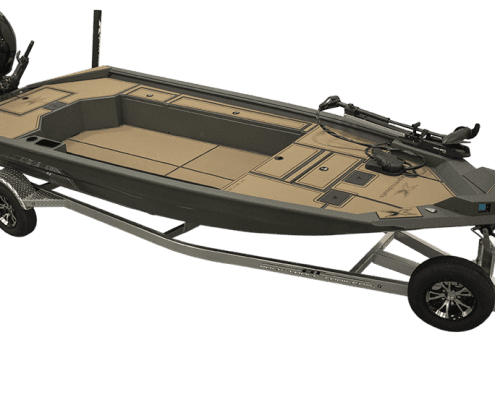

The above boat is shown with Canyon Green paint and optional SeaDek Liner and Floor Kit.	X18DB w/ Yamaha VF90LB $29,995 (Price includes Tiller Kit)

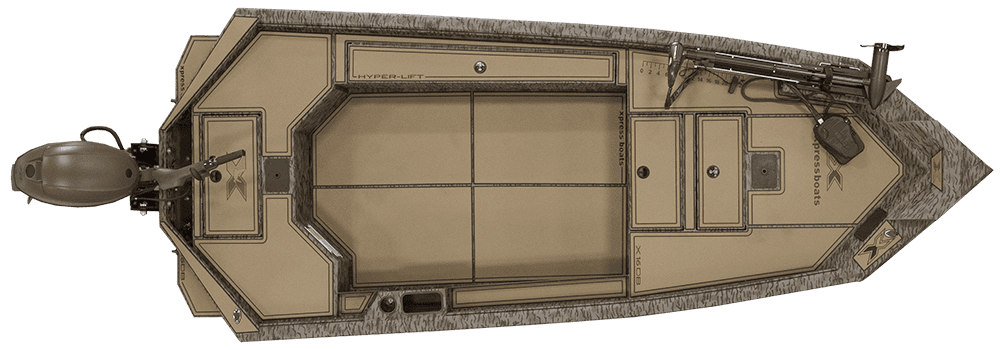

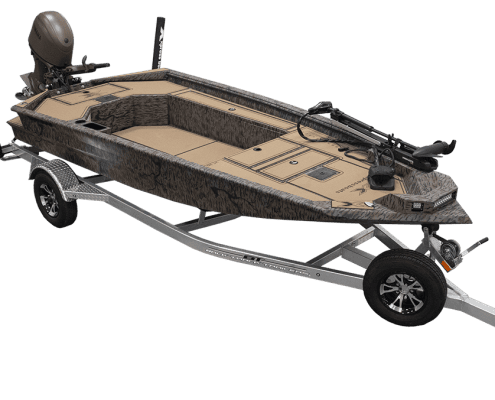

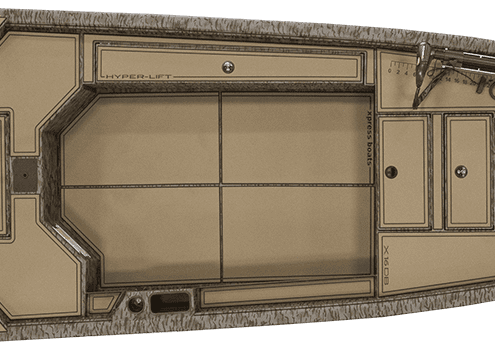

The above boat is shown with Camo paint and optional SeaDek Liner and Floor Kit.	ALL-NEW 2027 X16DB w/ Yamaha F70LB $27,495 (Price includes Tiller Kit)

SPECIFICATIONS

	X18DB	X16DB
Length	18’10”	16’10”
Bottom	63″	63″
Beam	88″	80″
Sides	22″	22″
Transom Height	21”	21″
Approx Weight	990 lb.	800 lb.
Max Wt./Per/Mo/GR	1,327 lb.	1,051 lb.
Total Wt. Per Cap	5 / 699 lb.	3 / 423 lb.
Aluminum – 5052 Gauge	0.125	0.125
Maximum HP	90	70
Overall Package Length	22’6″	20’6″
BackTrack Trailer Model	AWDB19	AWDB17

Overall package length includes trailer and engine
All measurements are approximate
Photos may include optional equipment
Nationally advertised price does not include freight and rigging

AVAILABLE COLORS

STANDARD FEATURES

Hyper-Lift Hull Xpress Camo Paint & Xtreme Coat Liner Step Pod Transom w/SeaDek All-welded Construction Longitudinal Rib Construction Unibody Injected Foam Construction Xpress Duck Boat Accessory Rail Full Aluminum Floor 3 Pedestal Bases on Front Deck Livewell in Front Deck Front Deck with Lockable Storage Welded in Lockable Gun/Rod Box Welded in Storage Tray on Starboard Side SeaDek Liner in Gun/Rod Box Remote Battery Switch 8 Gauge Trolling Motor Harness w/Plug Running Lights Bilge Pump Xpress Raised 3D Black Logo 3 L.E.D. Bow Lights w/Shroud 2 Transom L.E.D. Lights RGB Under Rail Lights 6” Vance Kick Plate BackTrack Single Axle Aluminum Trailer Aluminum Spare Tire and Mount Aluminum Wheel Upgrade (Per Axle) Galvanized Spare Tire and Mount

OPTIONS

Duck Boat Accessory Starboard Graph Mount Tiller Kit Graphs Garmin Humminbird Hardware Edge/Max Quick Release TM Bracket Jack Plate 6” Vance Kick Plate to 6” Hyd Bobs Kick Plate Paint Natgear Paint Upg. From Camo Paint Brown Interior Upg. From Camo Boat Black Natgear Upg. From Camo Paint Bass Boat (Charcoal, White, Silver, Canyon Green) Prop Upgrade to PowerTech SS SM/Med Hub Prop SeaDek SeaDek Liner for X-DB SeaDek Floor Kit for X-DB Seat Complete AeroX Mesh Seat w/13” Extension Fold Down Fishing Seat w/Small Seat Pole Euro Style Fishing Seat w/Small Seat Pole Steering XPA Tiller Assist Steering Trolling Motors Garmin Minn Kota Power-Pole Move BackTrack Trailer Options Aluminum Spare Tire and Mount Aluminum Wheel Upgrade (Per Axle) Galvanized Spare Tire and Mount
